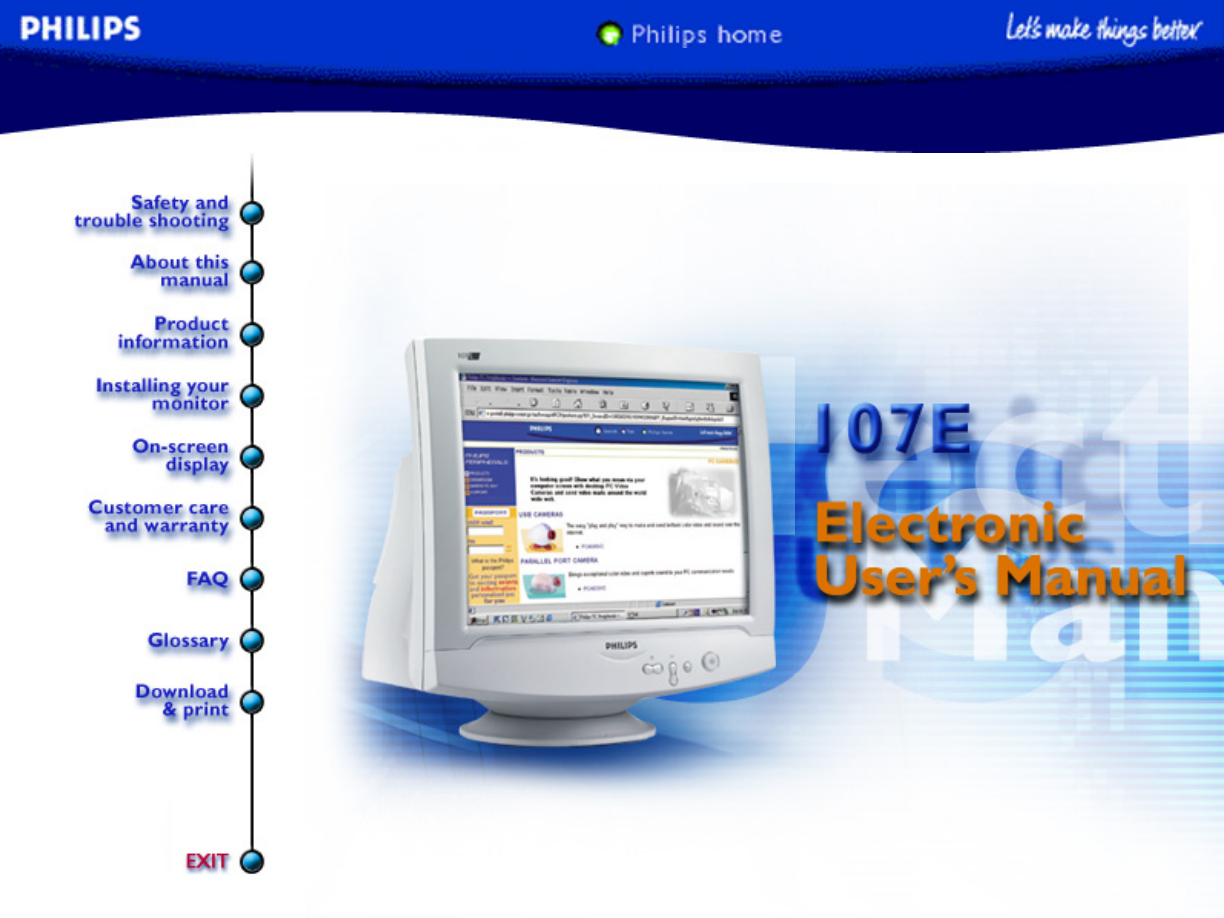

electronic user's manualfile:///D|/EDFU/LF3/lf3manual/english/107E/manual.html [2002/9/2 ?? 04:08:17]

UP and DOWN buttons are used when adjusting the OSD of your monitorBrightness hotkey. When the RIGHT arrow is pressed, the adjustmentcontrols for BRIG

Warranty service is available in all countries where the product is officially distributed by Philips ConsumerElectronics. In countries where Philips

This warranty gives you specific legal rights. You may have other rights which vary from state/province tostate/province.Philips Customer Care Center,

Power in - attach power cable here.1. Video In - this is a cable which is already attached to your monitor. Connect the otherend of the cable to your

On-Screen DisplayDescription of the On-Screen Display • The OSD Tree • The OSD ControlsDescription of the On Screen DisplayWhat is the On-Screen Displ

RETURN TO TOP OF THE PAGEThe OSD TreeBelow is an overall view of the structure of the On-Screen Display. You can use this as reference when youwant to

RETURN TO TOP OF THE PAGE On-Screen Displayfile:///D|/EDFU/LF3/lf3manual/english/OSD/OSDDESC.HTM (3 of 3) [2002/9/2 ?? 04:08:31]

Customer Care & WarrantyPLEASE SELECT YOUR COUNTRY/AREA TO READ THE WARRANTY COVERED:WESTERN EUROPE: Austria • Belgium • Cyprus • Denmark • France

Frequently Asked Questions1. What does the "Designed for Windows" logo signify?The "Designed for Windows" logo means your Phi

5. Where can I buy a USB hub for my Philips monitor?Philips provides an optional USB hub (type number: PCUH411) which can be attached to thebase

TCO95: Standby mode < 30W, Off mode < 8WTCO99: Standby mode < 15W, Off mode < 5W Visual Ergonomics:MPRII: No requirement.TCO92: No require

A low refresh rate or electrical interference typically causes flickering in the picture. Possiblesolutions include the following:Verify that the prop

Safety and Troubleshooting InformationSafety Precautions and Maintenance • Troubleshooting • Regulatory Information • OtherRelated InformationSafety p

LightFrame" consists of a software application and an Integrated Circuit (IC) embedded in themonitor. Together, they boost brightness and sharpne

22. What will happen when my system is no longer connected to a LightFrame" enabledmonitor - for example, when I take my notebook on the road?

27. What are Philips Multimedia Base's specifications? See detailed Multimedia Base specifications on the product information page. 28. Why

32. How does Auto Calibrate work? During the calibration process, different predefined black and white images are displayed onthescreen. The beam cu

newer models have this option in the On Screen Display under Input Signal Selection.Video card may be not be a VESA standard (try the monitor with ano

Yes, when degaussing your monitor via the OSD, it is normal for the monitor to make arelatively loud noise. Please be aware that many models will not

Select under Advanced Controls in the monitor 's OSD. Most computers require it to be set at 0.7V.Please review the following for possible solut

Reboot your computer while holding the Ctrl key on your computer. If you see any pictureduring the boot procedure, please verify the settings of your

GlossaryA B C D E F G H I J K L M N O P Q R S T U V W X Y ZAAutoscanA microprocessor-based feature of Philips Brilliance monitors is able to detect au

CCE MarkCE mark is displayed on products per EMC and LV ( low Voltage Device ) directives in compliance withEuropean Community safety, EMI and EMS req

About This Electronic User's ManualAbout This Guide • Other Documents You May Need • Notational DescriptionsAbout This GuideThis electronic user&

Points where convergence error is specified. Convergence-error correctionA method of correcting for convergence error to insure that all three beams l

controller to be automatically configured to make optimal use of the display without manual user interaction.DDC is implemented as part of the new Plu

Dot rateFrequency in MHz of the dot clock. It is a measure of the speed with which data is transferred between thevideo card and subsequent processin

In 1991, the Swedish Tjänstemannens Central Organization (TCO, Swedish confederation of ProfessionalEmployees ) set a standard even more severe than M

Also called line frequency and expressed in kHz, it is the number of video lines written on the screen everysecond (from left to right). The higher th

LLinearityThe degree to measure the actual location of a pixel on the screen corresponds with its intended location. (see figure ) Line frequencySee

MMoiré effectA fringe pattern arising from the interference between two superimposed line patterns.In a monitor it comes from the interference between

screen area, resulting in an image that is smaller (and less legible) than it needs to be.RETURN TO TOP OF THE PAGE PParallelogram DistortionSee Geome

RRasterThe area on screen that electron beam can reach. Refresh rateSee Vertical scanning frequency. ResolutionThe number of pixels that can be displ

Anti-Static coatingsDue to bombardment by beam electrons, monitor screens become electrically charged when in use.Electrically charged screens surface

Notes, Cautions, and WarningsThroughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italictype. These bloc

The ARAS coating reflects only about 0.5% of the incident light. AGRAS (Anti-Glare anti-Reflection Anti-Static) coating.A combined anti-reflection, an

SOG (Synchronization On Green)A properly functioning color monitor requires five kinds of signals: horizontal sync pulse, vertical sync pulse,red colo

See rotation function. Trapezoid distortionSee Geometrical distortion. TTL signalA TTL (Transistor-transistor-logic) signal is a digital signal level

signaling.A hub consists of two portions: the Hub Controller and Hub Repeater. The repeater is a protocol-controlledswitch between the upstream port a

VVertical dot pitchSee Dot pitch. Vertical scanning frequencyExpressed in Hz, this is the number of fields written to the screen every second in inte

resolutions from 1280 x 1024 to 1600 x 1280, horizontal line frequencies up to 90 kHz and bandwidths up to200 MHz. VIS (Viewable Image Size)The real s

Download and PrintThis page provides an option to read the manual in .pdf format. PDF files can be downloaded into your harddisk, then viewed and prin

109B.pdf109S.pdfDownload and Printfile:///D|/EDFU/LF3/lf3manual/english/DOWNLOAD/DOWNLOAD.HTM (2 of 2) [2002/9/2 ?? 04:08:32]

TroubleshootingSafety Precautions and Maintenance • Troubleshooting • Regulatory Information • OtherRelated InformationCommon ProblemsHaving trouble?

Dim PictureAdjust the Brightness and Contrast controls.● Check your video card and it's owner's manual instructions for itmay be a non-VES

Product InformationProduct Features • Technical Specifications • Automatic Power Saving • PhysicalSpecification • Pin Assignment • Product ViewsProduc

Regulatory InformationTCO '99 Information • TCO'99 Environmental Requirements • TCO '95 Information • TCO'95 EnvironmentalRequirem

TCO DevelopmentSE-114 94 Stockholm, SwedenFax: +46 8 782 92 07Email (Internet): [email protected] information regarding TCO'99 approved a

Congratulations!You have just purchased a TCO'95 approved and labelled product! Your choice has provided you with a product developed forprofess

Brominated flame retardantsBrominated flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay

- TCO95, TCO99 (Requirement for Environment Labelling of Ergonomics, Energy, Ecology and Emission,TCO: Swedish Confederation of Professional Employees

Changes or modifications not expressly approved by the party responsible for compliancecould void the user's authority to operate the equipment.U

VCCI Notice (Japan Only)This is a Class B product based on the standard of the Voluntary Control Council for Interference (VCCI) for Information techn

RETURN TO TOP OF THE PAGENorth Europe InformationPlacering/VentilationVARNING:FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄRDU STÄLL

Plassering/VentilasjonADVARSEL:NÅR DETTE UTSTYRET PLASSERES, MÅ DU PASSE PÅ AT KONTAKTENE FORSTØMTILFØRSEL ER LETTE Å NÅ. RETURN TO TOP OF THE PAGE BS

Information for UK only WARNING - THIS APPLIANCE MUST BEEARTHED.Important:This apparatus is supplied with an approvedmoulded 13A plug. To change a fus

VIDEO• Video dot rate 108 MHz• Input impedance- Video 75 ohm- Sync 2.2 kOhm• Input signal levels 0.7 Vpp• Sync input signalSeparate syncComposite sync

Other Related InformationSafety Precautions and Maintenance • Troubleshooting • Regulatory Information •Information for Users in the U. S. • Informati

6G3B11 Multimedia Base (option)Front View • Rear View • Technical Specifications • Description of the Controls • Installingyour Multimedia Base • Powe

D. Microphone jackAttach your microphone here.E. Audio InConnect this to the audiooutput of your PC.F. MIC OutConnect this to the microphoneoutput of

2. To UN-INSTALLLift the back hook from the hole on the bottomplate of your monitor.● Slide out the pedestal the opposite direction (fromwhen you in

RETURN TO TOP OF THE PAGE6G3B11 Multimedia Base (option)file:///D|/EDFU/LF3/lf3manual/english/INSTALL_2/mm_pede/mm_inst.htm (4 of 4) [2002/9/2 ?? 04:1

PCUH411 USB Hub (Option)Front View • Rear View • Installing your USB HubInstalling your USB HubInstalling on aconventional base.Take out theUSB hub fr

of the MultimediaPedestal.Attach the USBhub by sliding-into the Multimediabase.7. RETURN TO TOP OF THE PAGEUSB Hub (Optional Feature)file:///D|/EDFU/

The OSD ControlsDescription of the On-Screen Display • The OSD TreeThe OSD Controls : Brightness (HotKey) • Contrast (HotKey) • Language • Input Signa

1) Press the or button on the monitor. The CONTRAST window appears.2) Press the or button to adjust the contrast.3) When the contrast is adjusted

3) Press the or button until the desired language is highlighted.4) Press the button to confirm your selection and return to MAIN CONTROLS window.

If you have VESA's DPMS compliance display card or software installed in your PC, the monitor canautomatically reduce its power consumption when

RETURN TO TOP OF THE PAGEINPUT SIGNAL SELECTION (Not available in all models)INPUT SIGNAL SELECTION determines what you see on the screen. The default

MAIN CONTROLS will be highlighted.SmartHelpAfter returning to MAIN CONTROLS . . .. . . to continue to ZOOM, press the button until ZOOM is highlighted

4) Press the or button to adjust ZOOM.5) Press the button to confirm your selection and return to the MAIN CONTROLS window. CLOSEMAIN CONTROLS will

3) Press the button. The ADJUST HORIZONTAL window appears. POSITION should be highlighted.4) Press the or button to move the image to the left or

6) To adjust the horizontal size, press the or button.7) When the size is adjusted, press the button to return to MAIN CONTROLS window. CLOSE MAINC

3) Press the button. The ADJUST VERTICAL window appears. POSITION should be highlighted.4) Press the or button to move the image up or down.5) Whe

6) To adjust the vertical size, press the or button.7) When the size is adjusted, press the button to return to MAIN CONTROLS window. CLOSE MAINCON

3) Press the button. The ADJUST SHAPE window appears. ADJUST SIDE CURVE should behighlighted.4) Press the button. The SIDE CURVE window appears. PIN

5) To adjust the pincushion, press the or button.6) When the pincushion is adjusted, press the button to highlight BALANCED or press the buttonto

SmartHelpAfter returning to MAIN CONTROLS . . ...to continue to ADJUST SIDE ANGLES, start with step 5 under ADJUST SIDEANGLES and follow the directio

The 15-pin D-sub connector (male) of the signal cable (IBM systems): PinNo.Assignment PinNo.Assignment1 Red video input 9 No pin2 Green video input 10

4) Press the button to highlight ADJUST SIDE ANGLES.5) Press the button. The SIDE ANGLES window appears. TRAPEZOID should be highlighted.6) To adjus

8) To adjust the parallelogram, press the or button.9) When the parallelogram is adjusted, press the button to return to the ADJUST SHAPE window.BA

3) Press the button. The ADJUST SHAPE window appears. ADJUST SIDE CURVE should behighlighted.4) Press the arrow until ROTATE IMAGE is highlighted.5)

6) To adjust the rotation, press the or button.7) When the rotation is adjusted, press the button to return to the ADJUST SHAPE window. BACK TOMAIN

3) Press the button. The ADJUST COLOR window appears.4) Press the or button to highlight 9300K for GENERAL USE, 6500K for IMAGE MANAGEMENT,5500K fo

6a) If USER PRESET is highlighted, press the button to highlight RED. Next, press the orbutton to adjust the color red.6b) When finished with RED, p

RESET TO FACTORY SETTINGS returns everything in all the windows to factory presets.1) Press the button on the monitor. The MAIN CONTROLS window appea

SmartHelpAfter returning to MAIN CONTROLS . . .. . . to continue to EXTRA CONTROLS, press the button until EXTRACONTROLS is highlighted. Next, start w

5) To degauss your screen, press the button. Your screen will be degaussed, then the MAINCONTROLS window will reappear. CLOSE MAIN CONTROLS will be h

3) Press the button. The EXTRA CONTROLS window appears. ADJUST MOIRE will be highlighted. 4) Press the button. The ADJUST MOIRE window appears. HO

Installing your MonitorFront View • Rear View • 6G3B11 Multimedia Base (option) • PCUH411 USB Hub (option)Front ViewPower button switches your monitor

5) To adjust the horizontal moire, press the or button.6) When the horizontal moire is adjusted, press the button to highlight VERTICAL.7) To adju

on the LIGHTFRAME function to activate in full screen mode.1) Press button on the monitor. The MAIN CONTROLS window appears.2) Press the button unti

5) Pess the button. LIGHTFRAME will be activated.6) Press button to go back to MAIN CONTROLS. Press button again to exit the OSD. RETURN TO TOP OF

RETURN TO TOP OF THE PAGE The OSD Controlsfile:///D|/EDFU/LF3/lf3manual/english/OSD/osd_cont.htm (27 of 27) [2002/9/2 ?? 04:11:10]

Your International Philips F1rst Choice WarrantyThank you for purchasing this Philips monitor.All Philips monitors are designed and manufactured to hi

Your International GuaranteeDear Customer,Thank you for purchasing this Philips product which has been designed and manufactured to the highestquality

LIMITED WARRANTY(Computer Monitor) One Year Exchange**Product will be exchanged with a new or renewed to original specifications unit within two busin

For more information, contact the Philips Customer Care Center by calling (877) 835-1838 (U.S.A.customers only) or (903) 242-4804.Before Requesting Se

All Philips monitors are designed and manufactured to high standards and deliver high-qualityperformance, ease of use and ease of installation. Should

LIMITED WARRANTY(Computer Monitor) Three Years Free Labor / Three Years Free Service on Parts / One Year Exchange**Product will be exchanged with a ne
